Odor and Biogas Systems

Natural air treatment for waste and biogas facilities, delivering reliable results and clean operations.

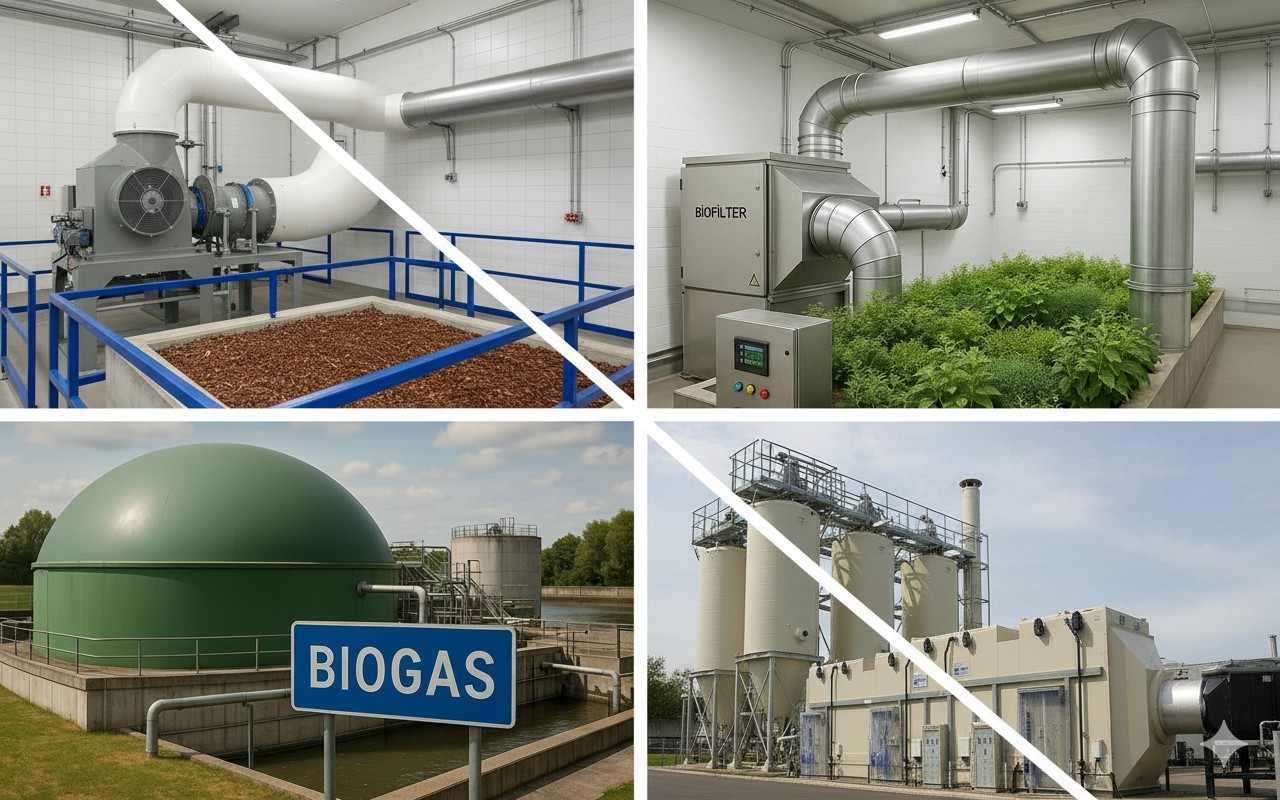

Odor and Biogas Control Systems

Core Odor & Biogas Control Technologies

Proven approaches for air treatment and biogas enhancement, engineered for rigorous industrial demands.

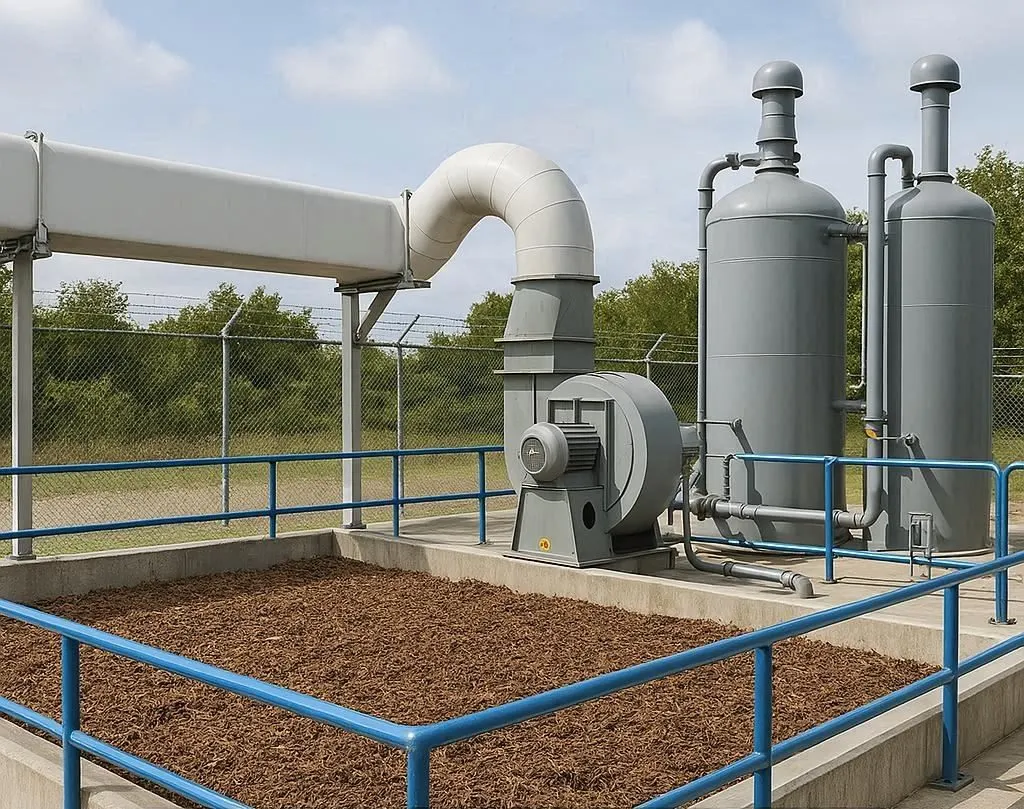

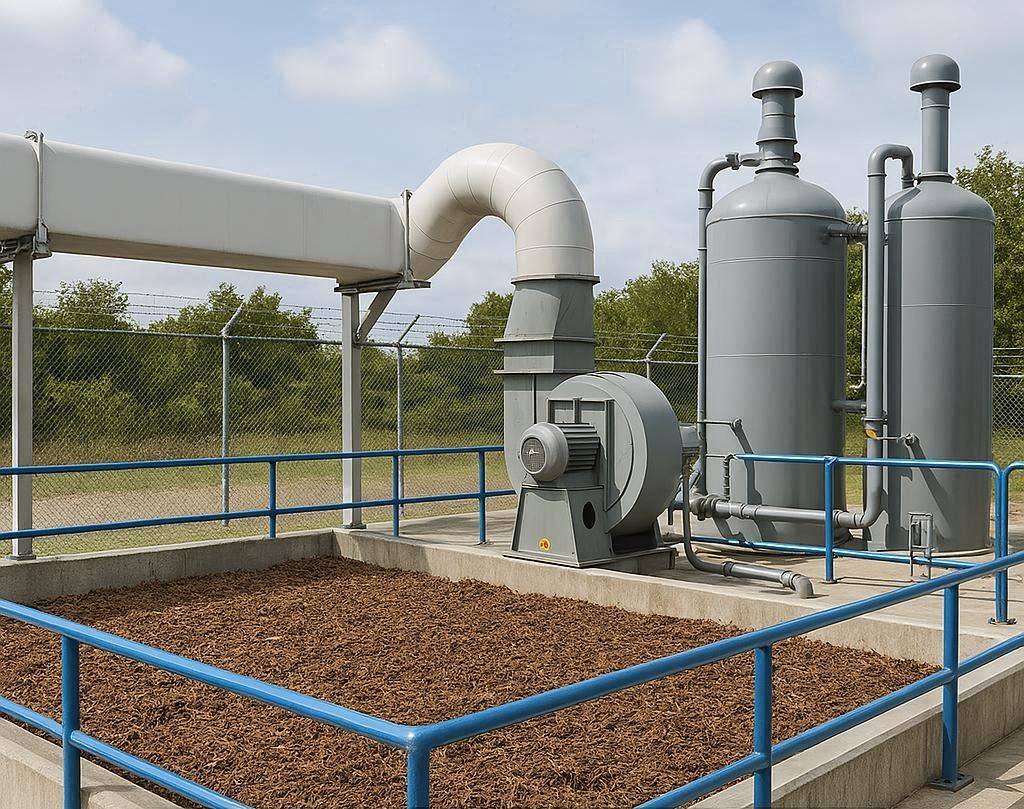

Open Bed Biofilter

Open Bed Biofilter

Large-scale systems using natural media (wood chips, compost, soil) to treat high-volume air streams — ideal for waste treatment plants, sludge handling, and landfill gas applications.

Capacity: 5,000–50,000 m³/h H₂S Removal: 95–98% Media: Natural organic beds

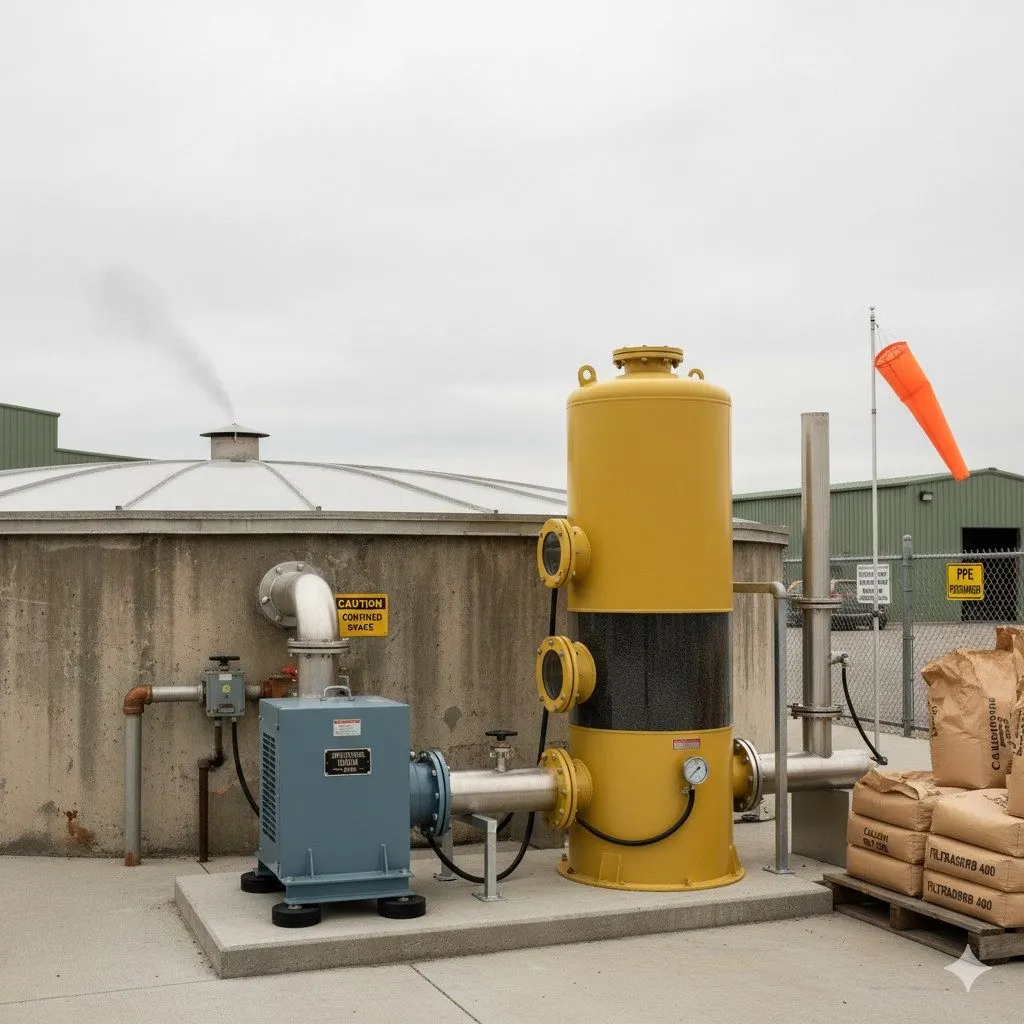

Activated Carbon Adsorber

Activated Carbon Adsorber

High-porosity carbon beds designed to capture volatile compounds, mercaptans, and hydrogen sulfide from low-concentration air streams. Media is replaceable for continuous operation.

Capacity: 1,000–20,000 m³/h Operating Temperature: 5–40°C Regeneration: Thermal or steam

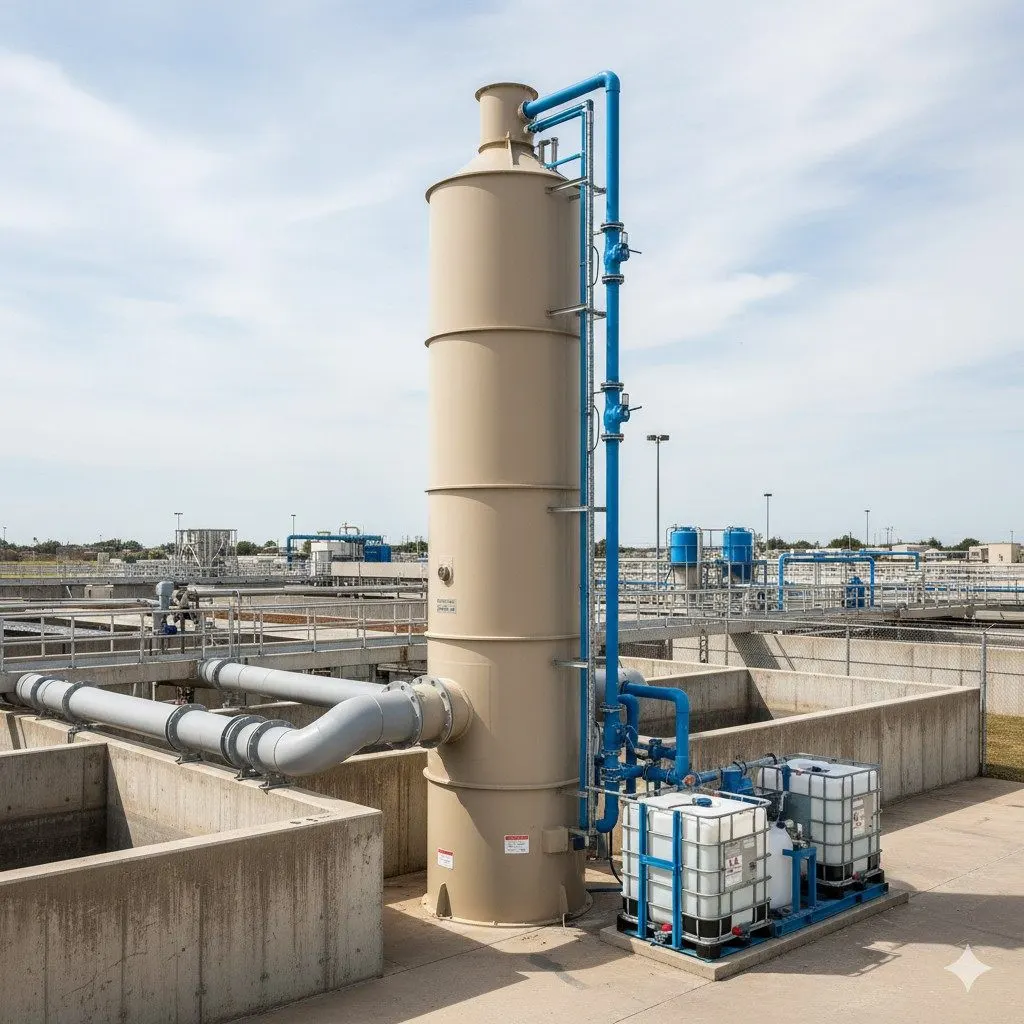

Wet Scrubber

Wet Scrubber

Chemical-free treatment using water and natural additives to address odors at the source. Robust, low-energy, and ideal for high-humidity environments like composting or rendering plants.

Capacity: 500–30,000 m³/h Operating Temperature: 5–40°C Control: Fully automated

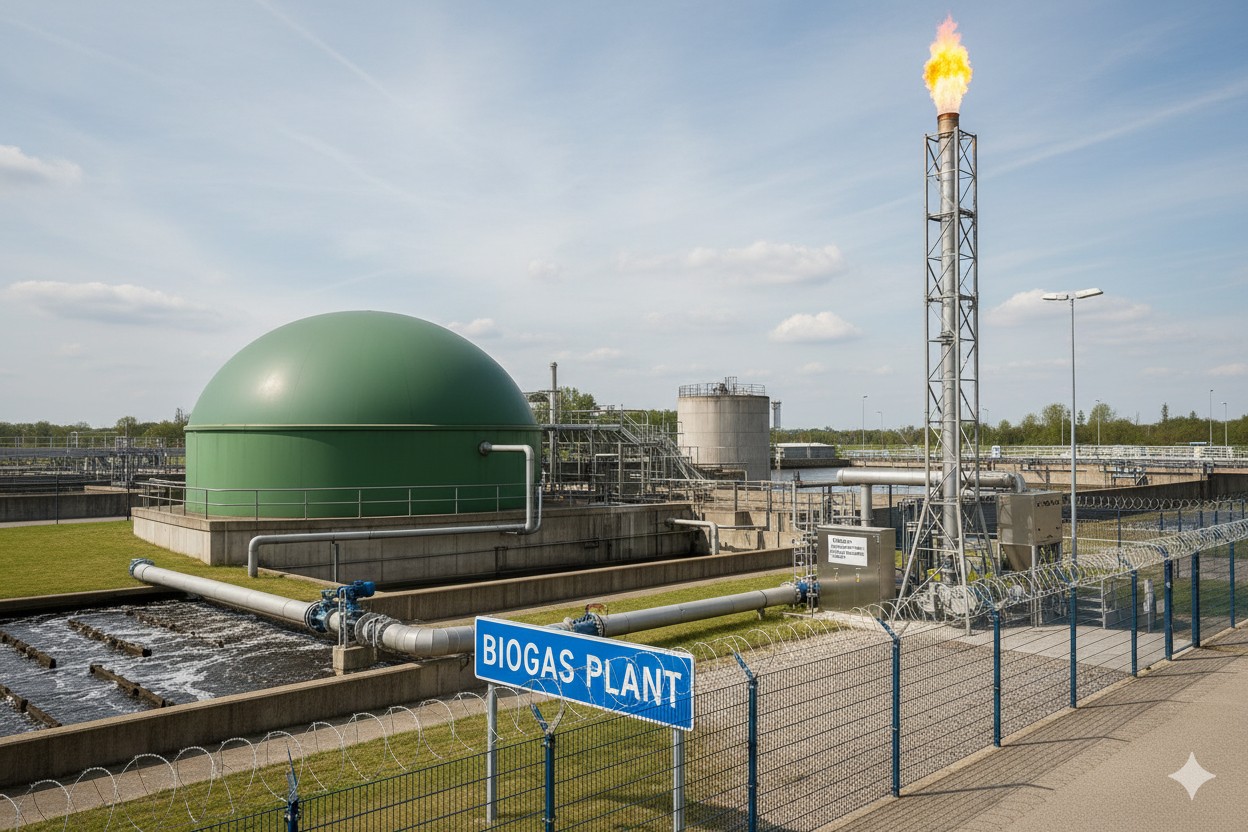

Biogas Treatment & Conditioning

Biogas Treatment & Conditioning

Installations that remove hydrogen sulfide, siloxanes, and moisture from biogas to produce clean, high-quality gas. Enhances fuel quality, reduces corrosion, and eliminates odors.

Capacity: 500–50,000 m³/h H₂S Removal: < 1 ppm Calorific Value: >35 MJ/Nm³

Product Overview

Our odor and biogas systems offer reliable, chemical-free methods for industrial applications. We use air and gas purification techniques to remove hydrogen sulfide, ammonia, VOCs, and siloxanes, achieving clean and lasting results.

Odor & Biogas System Types

Open Bed Biofilter

Large-scale systems with natural media beds for cost-effective, high-volume odor control.

Activated Carbon Adsorber

Adsorption systems delivering powerful, reliable odor control for low-concentration contaminants.

Wet Scrubber

Efficient water-based systems ensuring reliable air cleaning in humid environments.

Biogas Treatment & Conditioning

Installations that remove hydrogen sulfide, siloxanes, and moisture from biogas to produce clean, high-quality gas.

Key Features

  • Natural odor treatment
  • Low operating and maintenance costs
  • High efficiency in removing H₂S, NH₃, and VOCs
  • Minimal energy consumption
  • Long-lasting components
  • Automatic humidity and pH control
  • Robust and reliable design
  • Easy integration into existing installations

Applications

  • Odor control at wastewater treatment plants
  • Ventilation at sludge processing facilities
  • Odor management at pump stations
  • Industrial wastewater treatment
  • Air treatment at composting facilities
  • Odor control at food processing plants
  • Air treatment at rendering plants
  • Landfill gas treatment and biogas upgrading

Technical Specifications

Air Flow Rate: 100–50,000 m³/h
Removal Efficiency: 95–99%
Residence Time: 30–60 seconds
Media Depth: 1.0–1.5 meters
Operating Temperature: 5–40°C
Pressure Drop: < 500 Pa

Odor & Biogas System Design

Our engineers will design a customized system based on your air flows, compound concentrations, and operational requirements.

Get Custom Design Odor & Biogas Assessment
