Core Municipal Water Treatment Technologies

Engineered for reliability, compliance, and purity — where every drop meets the highest standards

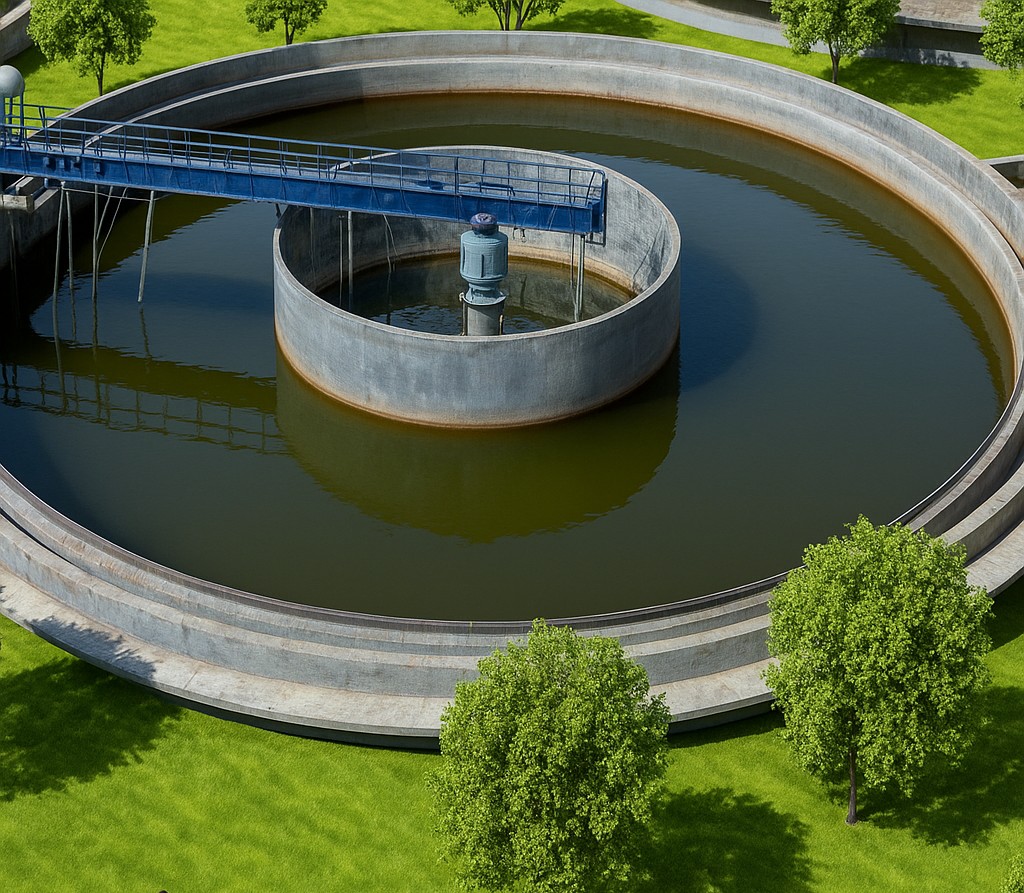

Clariflocculator & Flash Mixer

Precision-engineered primary treatment units that combine rapid mixing and flocculation with sedimentation — achieving >95% suspended solids removal with minimal chemical usage.

Capacity: 500–50,000 m³/day Efficiency: >95% TSS removal Chemical Dosing: Automated

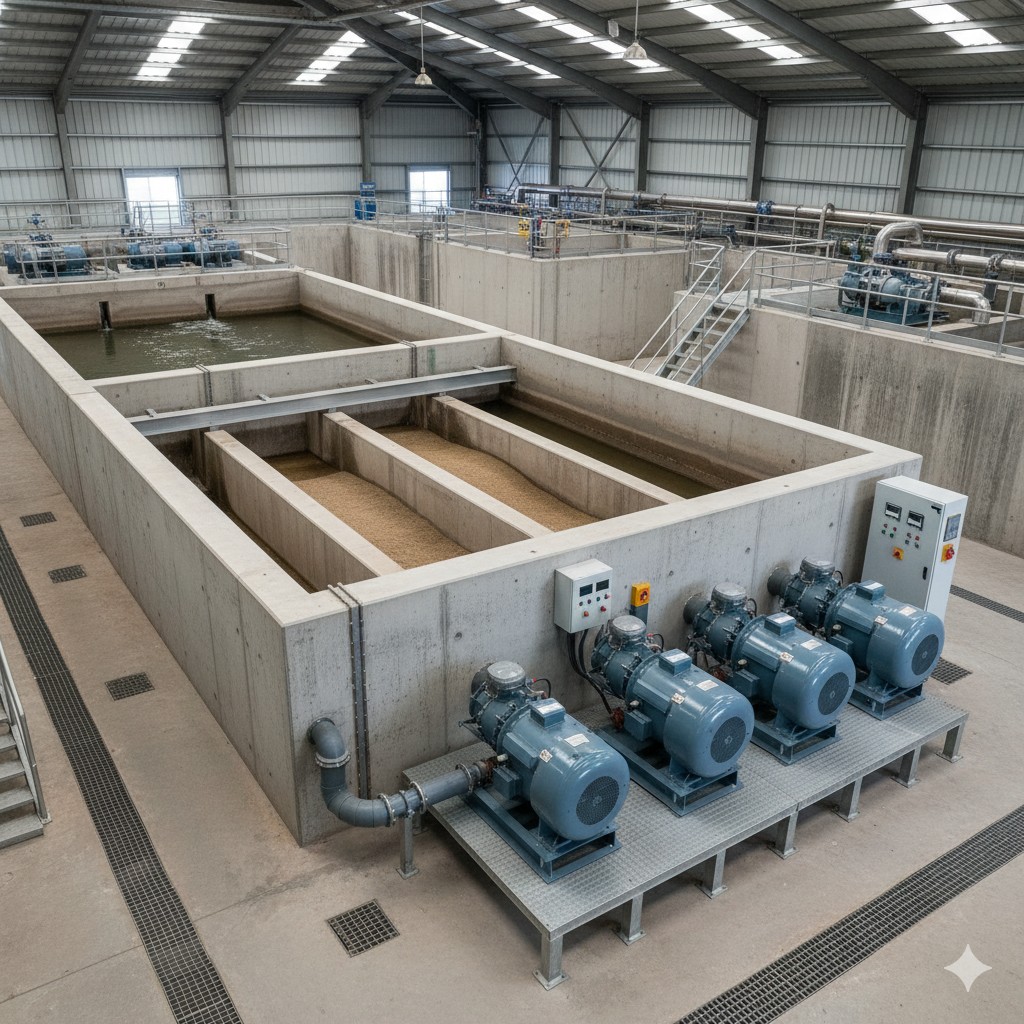

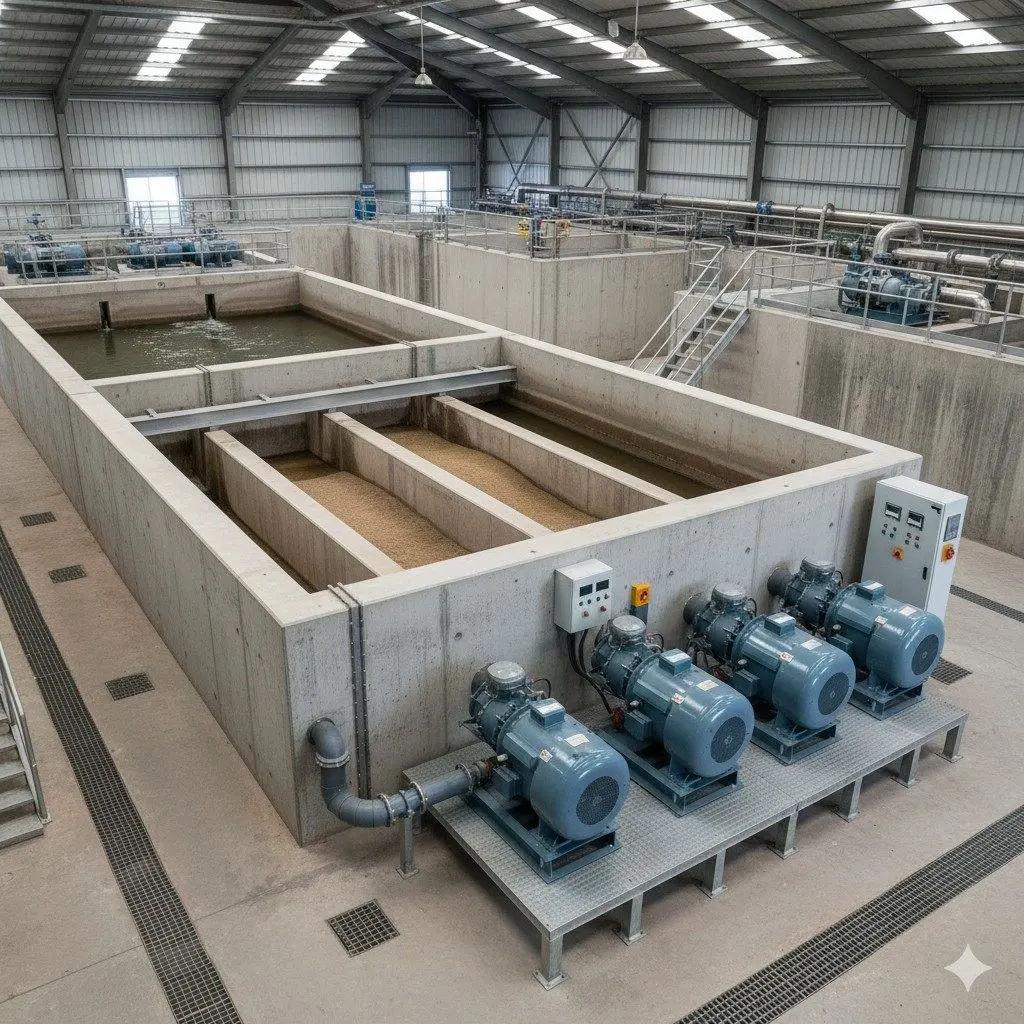

Rapid Sand Filtration

High-efficiency granular filters using anthracite, sand, and garnet layers to remove fine particles and residual turbidity — delivering water with <0.1 NTU clarity.

Capacity: 100–20,000 m³/h Turbidity Output: < 0.1 NTU Backwash: Automated, water-efficient

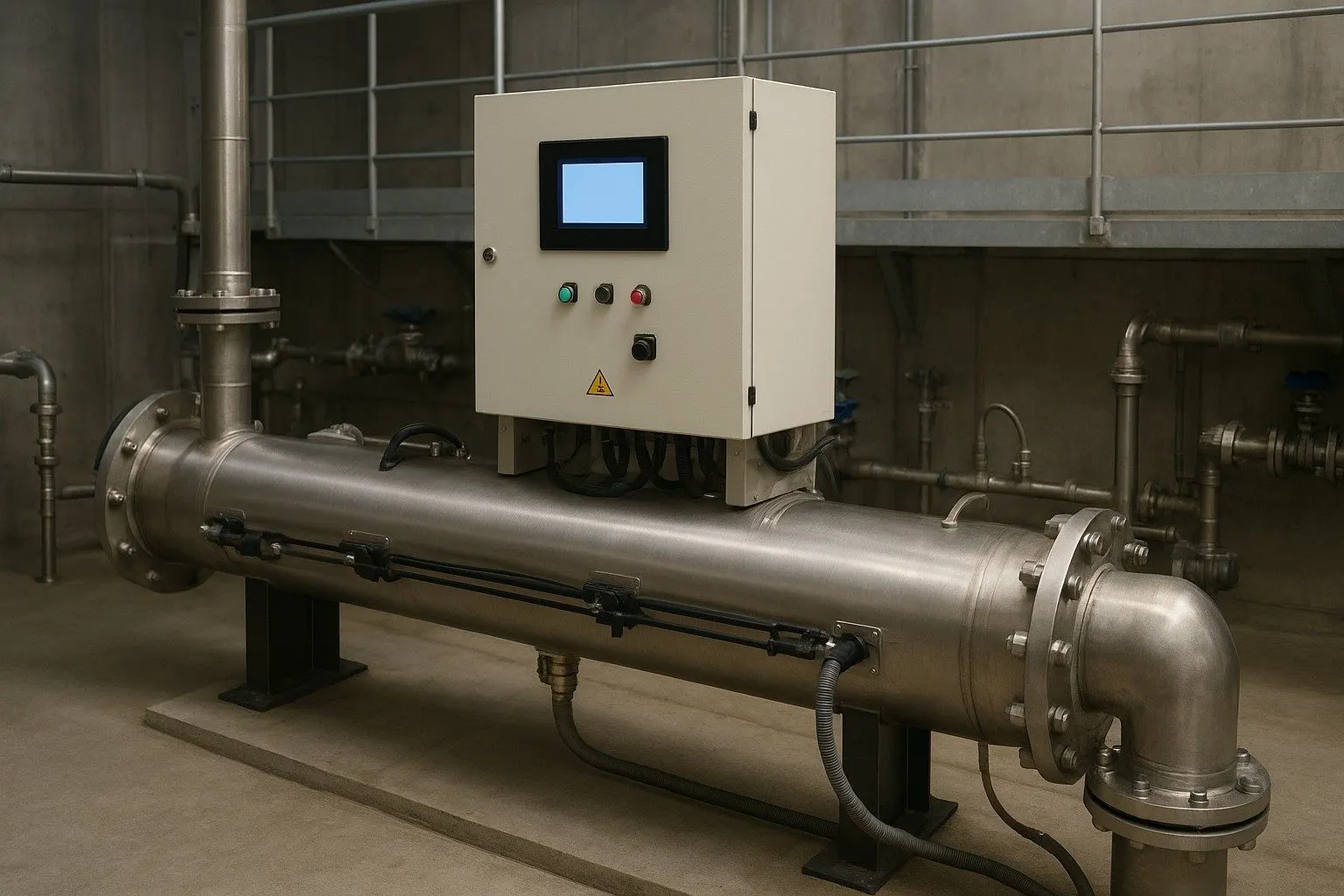

UV Disinfection System

Chemical-free pathogen inactivation using high-intensity UV-C lamps — proven 4-log reduction of bacteria, viruses, and protozoa without disinfection by-products.

Capacity: 10–15,000 m³/h UV Dose: 40 mJ/cm² (WHO standard) Monitoring: Real-time intensity & lamp life

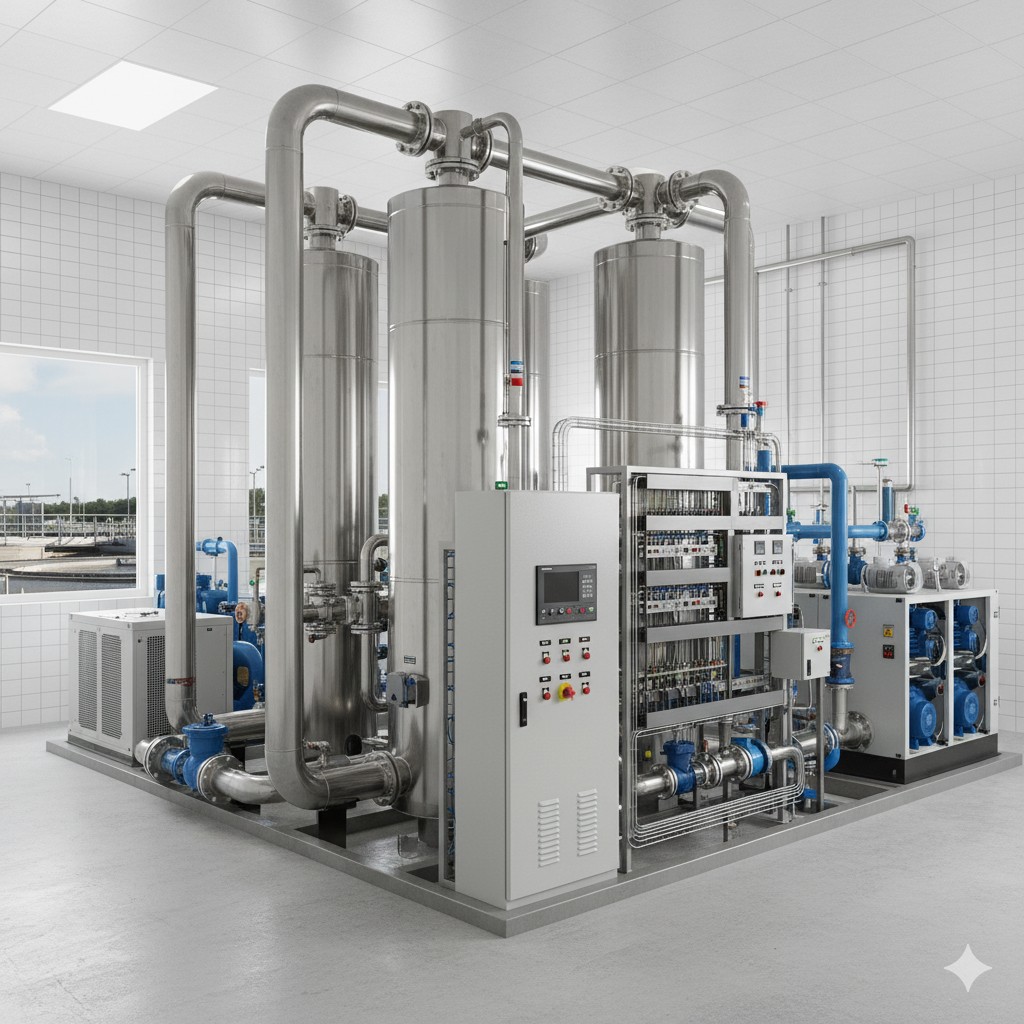

Ozone Pre-Oxidation System

Advanced oxidation for taste, odor, and micropollutant control — breaks down organic compounds before filtration, reducing chlorine demand and improving disinfection efficiency.

Capacity: 5–500 kg O₃/h Dose Range: 0.5–3.0 mg/L Ozone Source: On-site generator with oxygen feed

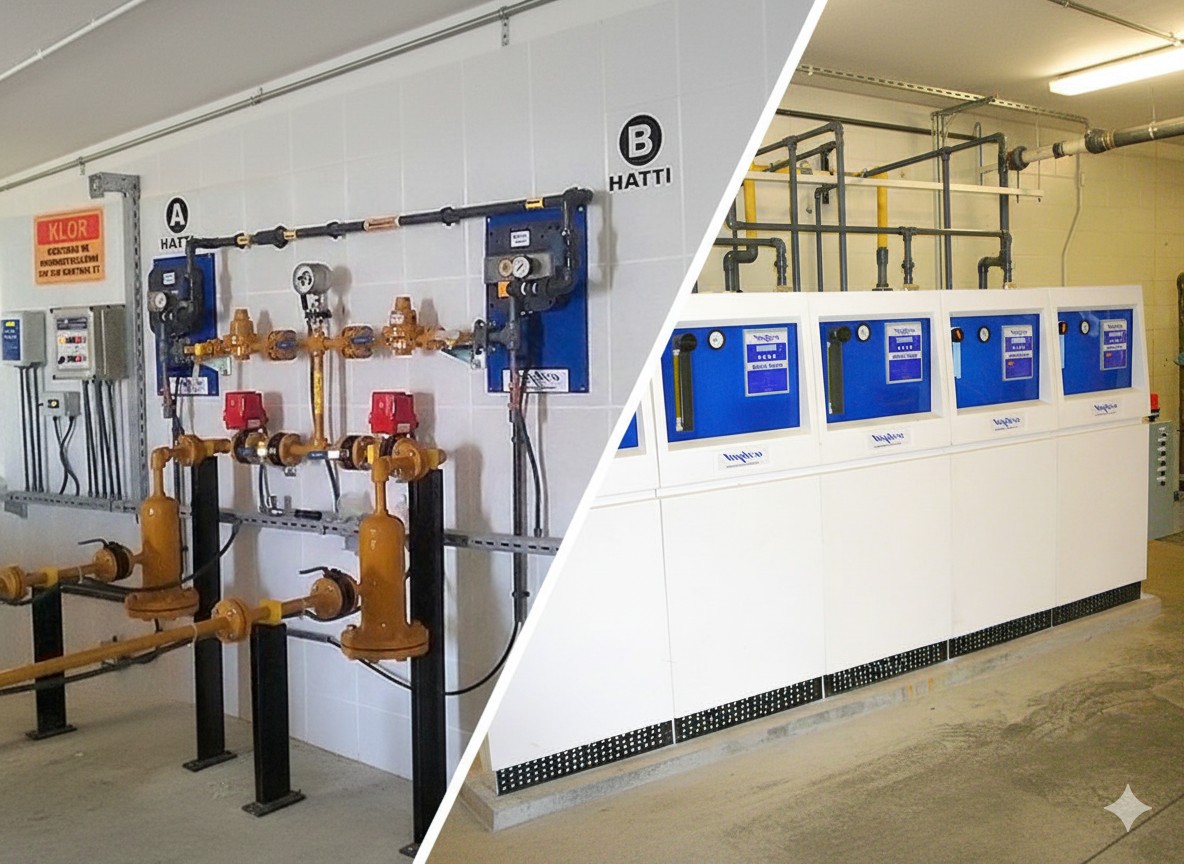

Chlorination Systems

Our chlorination systems provide effective and economical disinfection for water and wastewater treatment applications. These systems are designed to deliver precise chlorine dosing while ensuring operator safety and regulatory compliance through automated controls and monitoring.

Capacity: 10–15,000 m³/h Dosing Range: 0.1-50 mg/L Residual Control: ±0.1 mg/L accuracy

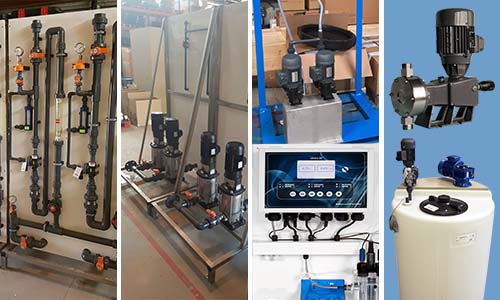

Dosing Systems

ESCA chemical dosing systems ensure precise capacity, optimized detention time, and safe, efficient water treatment.

Capacity: 0.5-10,000 l/h Dose Range: 0.5-10,000 l/h Detention time: 10–20 minutes

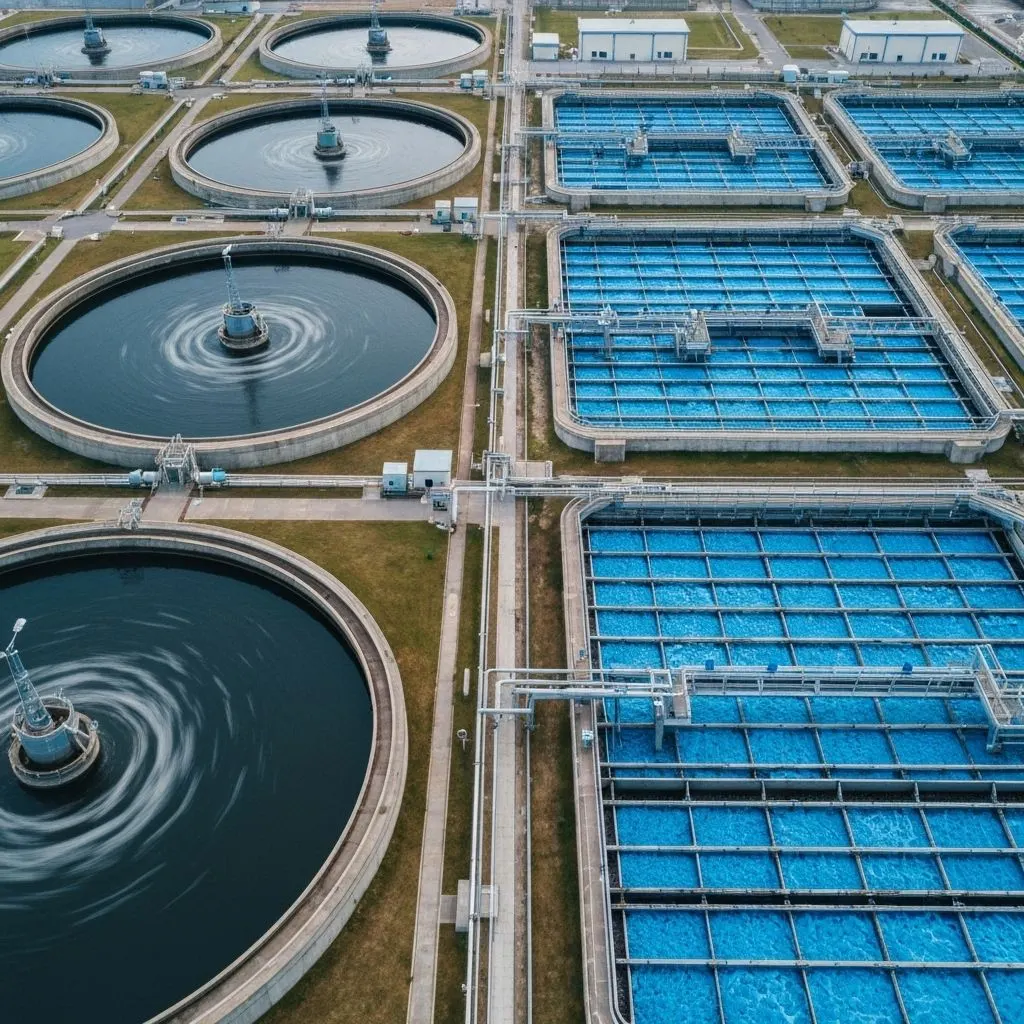

Product Overview

Our municipal water treatment systems are engineered to handle large volumes of water while ensuring consistent quality and regulatory compliance. These comprehensive solutions integrate multiple treatment processes to deliver safe, potable water to communities and cities.

Treatment Processes

Coagulation & Flocculation

Chemical treatment to aggregate suspended particles

Sedimentation

Gravity settling of flocculated particles

Filtration

Multi-media filtration for fine particle removal

Disinfection

Chlorination, UV, or ozone for pathogen elimination

Key Features

High-capacity treatment systems
Automated process control and monitoring
Regulatory compliance assurance
Energy-efficient design
Redundant systems for reliability
Real-time water quality monitoring
SCADA integration capabilities
Modular and expandable design

Applications

Municipal water treatment plants
Regional water authorities
Large residential developments
Industrial parks and complexes
Military bases and installations
Educational campuses
Healthcare complexes
Emergency water treatment

Technical Specifications

Capacity Range: 1,000–100,000 m³/day

Treatment Efficiency: 99.9% pathogen removal

Turbidity Removal: < 0.1 NTU

Power Requirements: 380 V–11 kV, 50/60 Hz

Control System: SCADA with redundancy

Compliance: WHO, EPA, EU standards

Municipal Project Supply

Planning a municipal water treatment project? We supply high-quality machinery and equipment designed for reliable performance in large-scale water treatment plants.

Project Consultation
